Packing: PE plastic bags and placed in paper drums Net Weight: 20KG per drum Storage:Store n a clean and dry environment at 5-30 °C to prevent impurities such as dust and water vapor from mixing in. Transportation: Non-dangerous goods.

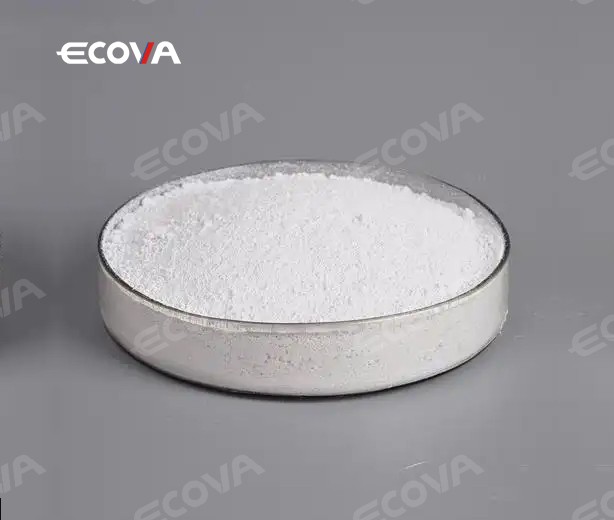

PVDF Copolymer ER6026 is a high-purity, powder- or particle-shaped polyvinylidene fluoride copolymer with excellent mechanical properties, high-temperature resistance, and chemical stability. The presence of comonomers enhances its flexibility and reduces its melting point while maintaining the inherent advantages of PVDF, such as mechanical strength, chemical resistance, and aging resistance. These characteristics ensure effective electrochemical stability and safety during battery charging and discharging processes, meeting the requirements for environmental protection and advanced processing technologies. PVDF Copolymer ER6026 is suitable for various PVDF product processing methods, including injection molding and extrusion, and can also be applied to coatings for lithium battery separators.
| Item | Unit | ER6026-01 | ER6026-02 |
| Appearance | / | White power | White power/particle |
| Particle Size D50 | μm | 10±5 | / |
| Relative Density | g/cm3 | 1.76-7.78 | 1.76-1.78 |
| Melting Point | ℃ | 155±5 | 155±5 |
| Moisture Content | % | ≤0.1 | ≤0.1 |
| Thermal Deccomposition Temperature | ℃ | ≥380 | ≥380 |
| Melt Flow Rate | g/10min | ≤4.0 | 4.0-25.0 |
| Rotation Viscosity | mpa.s | 500-4000 | / |
| Tensile Strength | MPa | ≥35 | ≥35 |
| Elongation Rate | % | ≥25 | ≥25 |
ER6026-01 Primarily applied in lithium battery diaphragm coatings, suitable for both oil-based and water-based formulations.
ER6026-02 Used for manufacturing PVDF products through molding, extrusion, and other processing methods.
